Product Description
SN-104
- Forced Lubrication System
- PLC Electric Control System
- Slow Down Driving System
- Auto Speed Control Device
- Safety Cover Detector Device
- Easy Understanding of Indicating Panel
- Safety Stop for Sheet Sticking on Bracket
Contact
Technical Data
| Specification | SN-104 (4-COLOR) |
|---|---|
| Max. Sheet Size | 720 × 1020 mm |
| Min. Sheet Size | 360 × 540 mm |
| Max. Printing Area | 710 × 1020 mm |
| Thickness of Sheet | 0.04-0.85 mm |
| Max. Mechanical Speed | 12000 Sheets/HR |
| Plate Size | 800 × 1030 mm |
| Pile Height of Feeder | 1000 mm |
| Pile Height of Delivery | 1100 mm |
| Rated Power of Main Motor | 30kw / 40HP |
| Total Power Required | 42kw / 56HP |

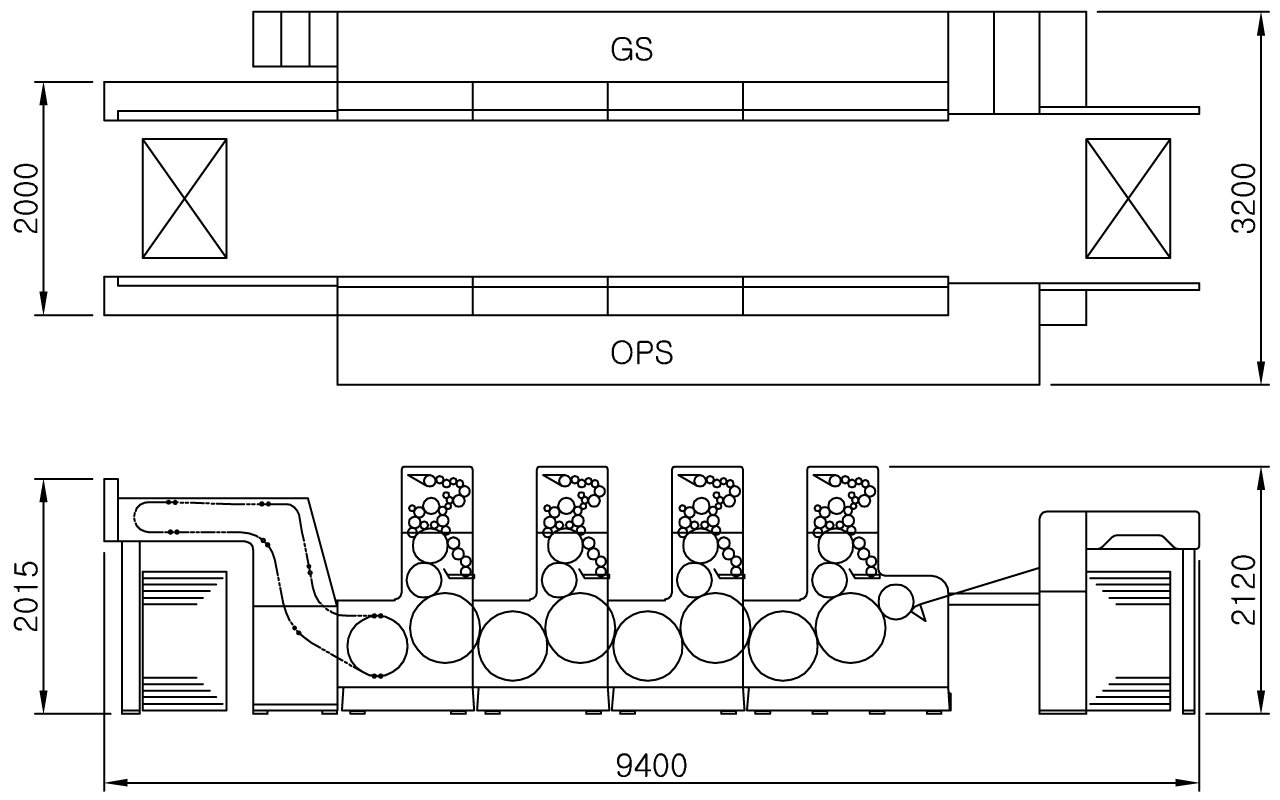

| Dimension (L×W×H) (mm) | 9400×3200×2120 |
| Net Weight | 30,000kgs |
