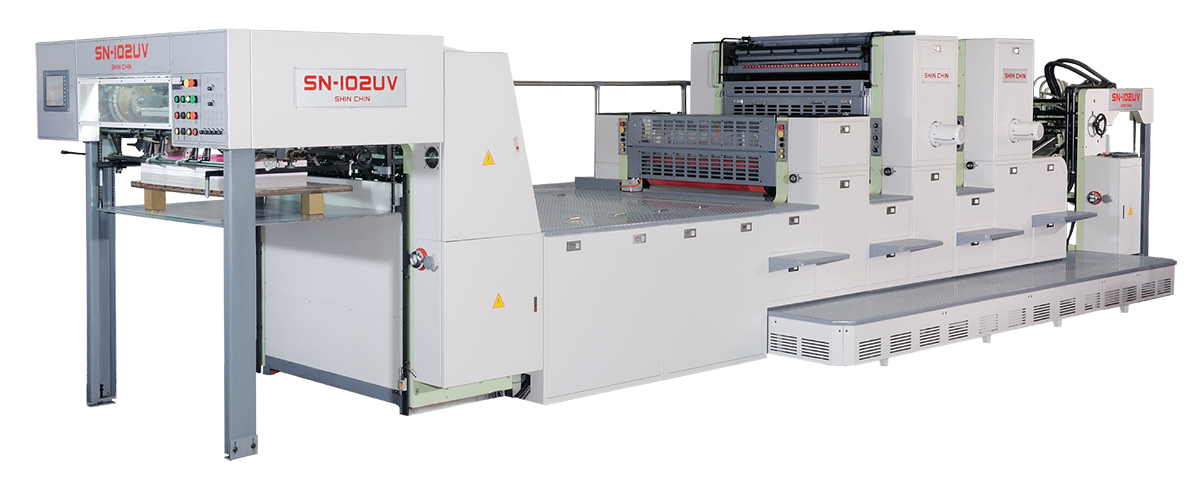

Two Color Offset Coating Machine

SN-102UV

Product Info

Model SN-102UV
Name Two Color Offset Coating Machine
Video none
Company

Product Description

SN-102UV
  • 2-Color Offset Press
  • Drip-Off Coating
  • UV/Water-Based Coating
  • Chamber Doctor Blade System
  • Ceramic Anilox Roller
  • Forced Lubrication System
  • PLC Electric Control System
  • Slow Down Driving System
  • Auto Speed Control Device
  • Safety Cover Detector Device
  • Easy Understanding of Indicating Panel
  • Safety Stop for Sheet Sticking on Bracket
Optional
  • Water Heating System
  • Interdeck UV Drying System, Water Cooling System
Contact

ferguschou@gmail.com

Technical Data
Specification SN-102UV
Max. Sheet Size 720×1020 mm
Min. Sheet Size 360×540 mm
Max. Printing Coating Area 700×1010 mm
Thickness of Sheet 0.06-0.85 mm
Max. Mechanical Speed 10000 Sheets/HR
Working Speed 6000~8000 Sheets/HR
Min. Mechanical Speed 3000 Sheets/HR
Pile Height of Feeder 1000 mm
Pile Height of Delivery 1100 mm
Max. Paper Weight 1000 kgs
Main Motor 20 HP
Total Power 32 HP
UV Dry System 13kw×3 = 39kw (air cooling)

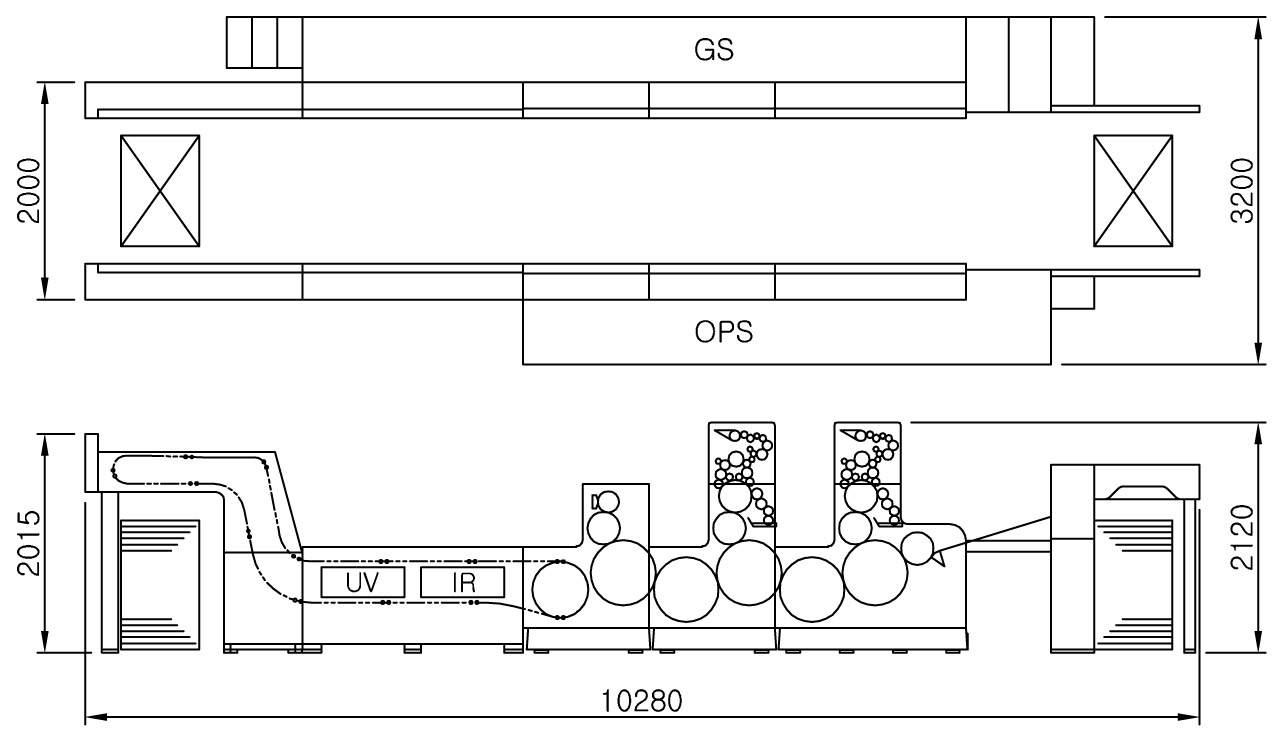

Floor Space (L×W×H)mm 10280×3200×2120
Appx. Weight 22000 kgs
