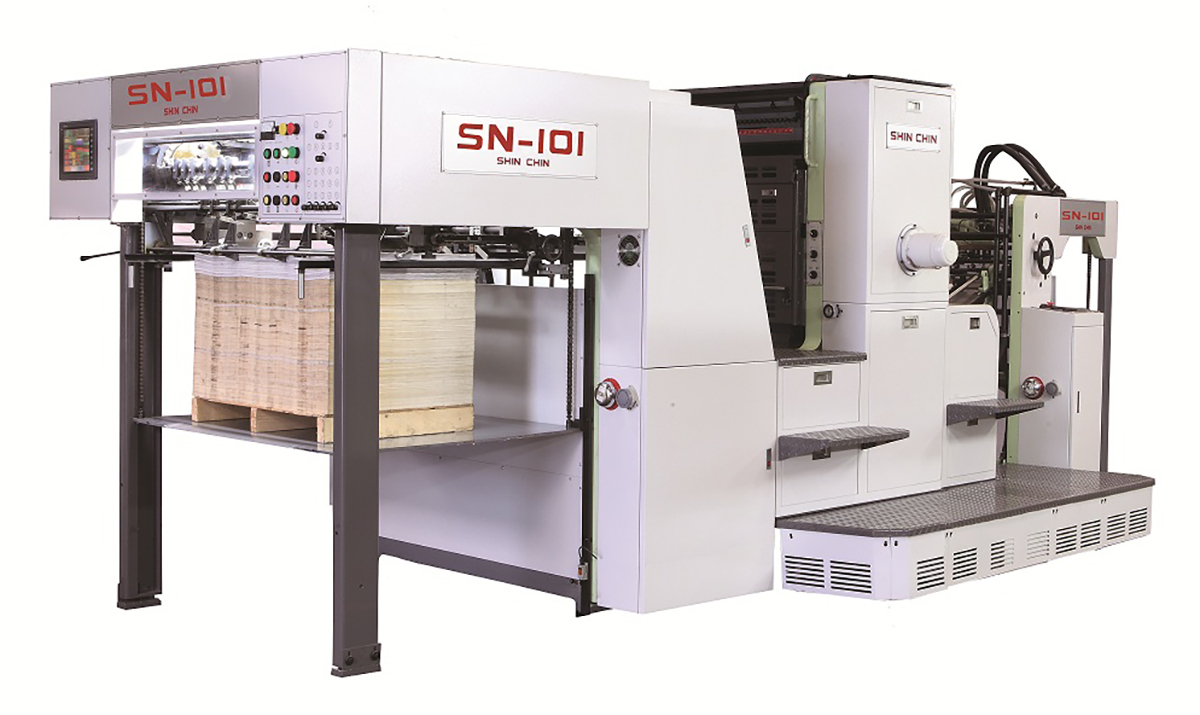

Single Color Offset Press

SN-101

Product Info

Model SN-101
Name Single Color Offset Press
Video none
Company

Product Description

SN-101
  • Forced Lubrication System
  • PLC Electric Control System
  • Slow Down Driving System
  • Auto Speed Control Device
  • Safety Cover Detector Device
  • Easy Understanding of Indicating Panel
  • Safety Stop for Sheet Sticking on Bracket
Contact

ferguschou@gmail.com

Technical Data
Specification SN-101 (1-COLOR)
Max. Sheet Size 720 × 1020 mm
Min. Sheet Size 360 × 540 mm
Max. Printing Area 700 × 1010 mm
Thickness of Sheet 0.04-0.85 mm
Max. Mechanical Speed 12000 Sheets/HR
Plate Size 800 × 1030 mm
Pile Height of Feeder 1000 mm
Pile Height of Delivery 1100 mm
Rated Power of Main Motor 7.5kw / 10HP
Total Power Required 18kw / 23HP

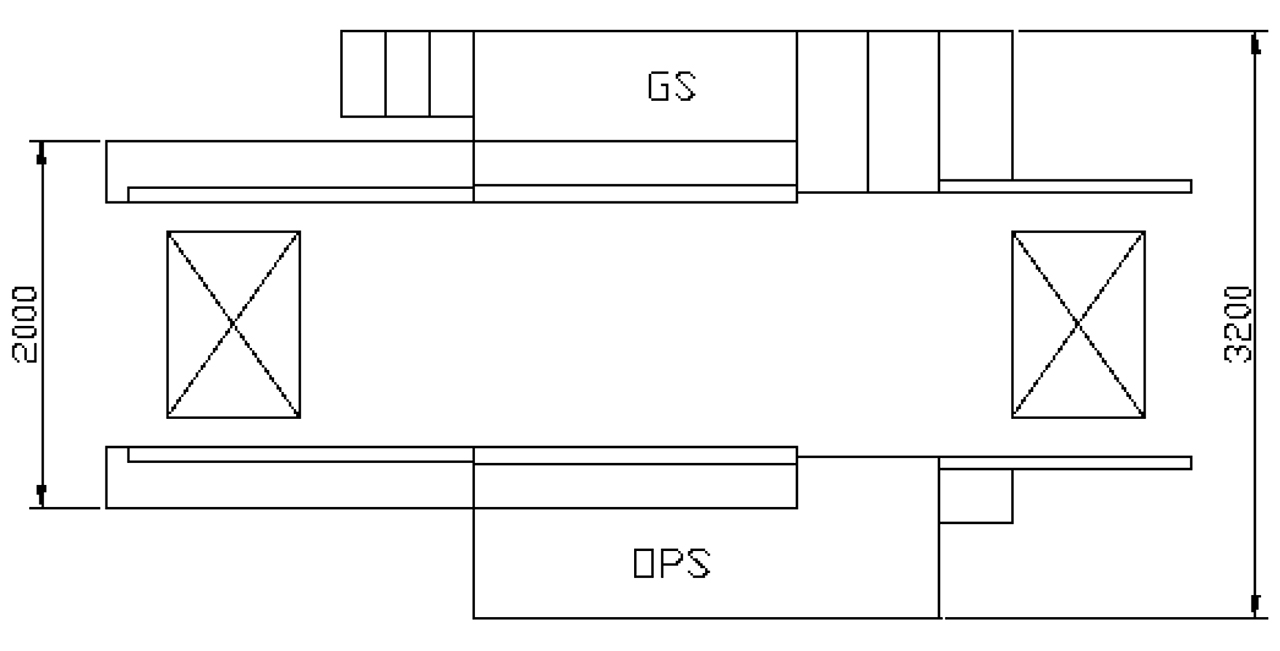

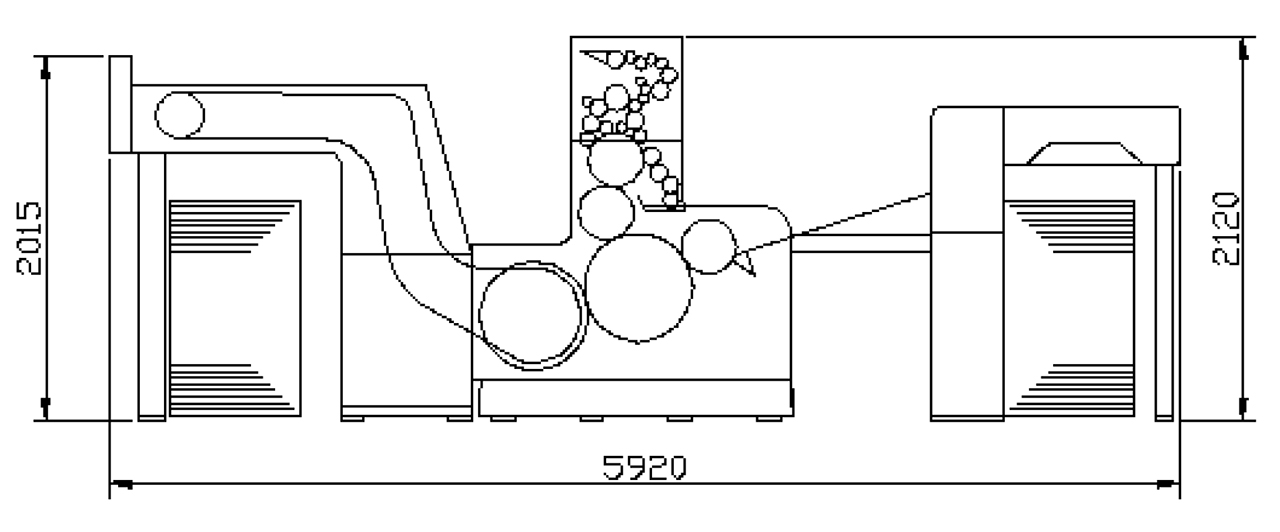

Dimension (L×W×H) (mm) 5920×3200×2120
Net Weight 12,000kgs
