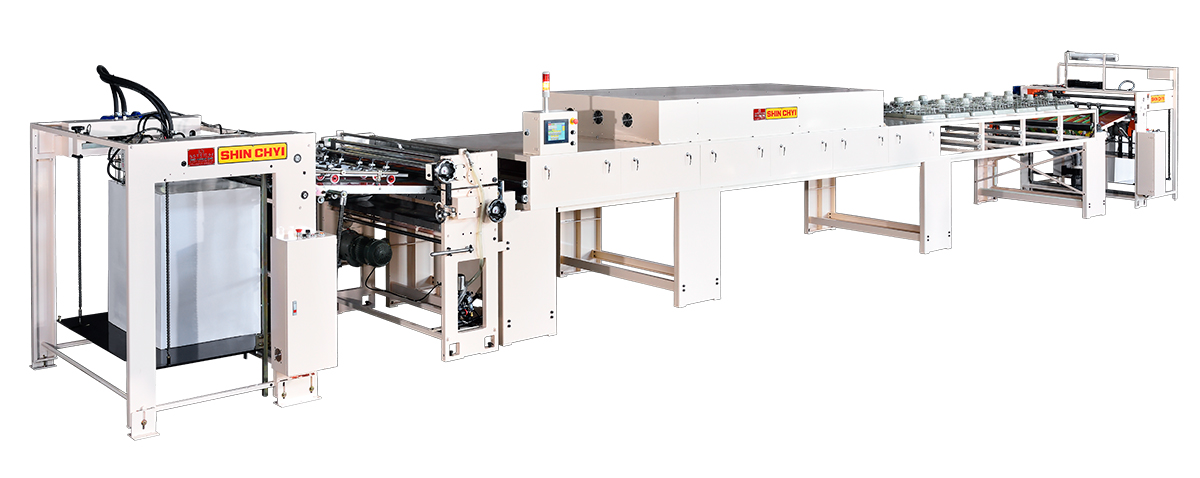

Automatic Thick Paper Varnishing Machine

NSW-B, NSW-BLP
NSW-B, NSW-BLP
Automatic Thick Paper Varnishing Machine Water Base Available

Product Info

Model NSW-B, NSW-BLP
Name Auto Varnishing Machine
Video https://youtu.be/RBfiP_I5pCs
Company

Product Description

NSW-B, NSW-BLP
  • Stream Feeder
  • I.R. Curing System
  • Automatic Sensor Detective Counting System
  • Special Design for Waterbase Curing System
  • Blister Coating Available
  • PLC, HMI System

Technical Data

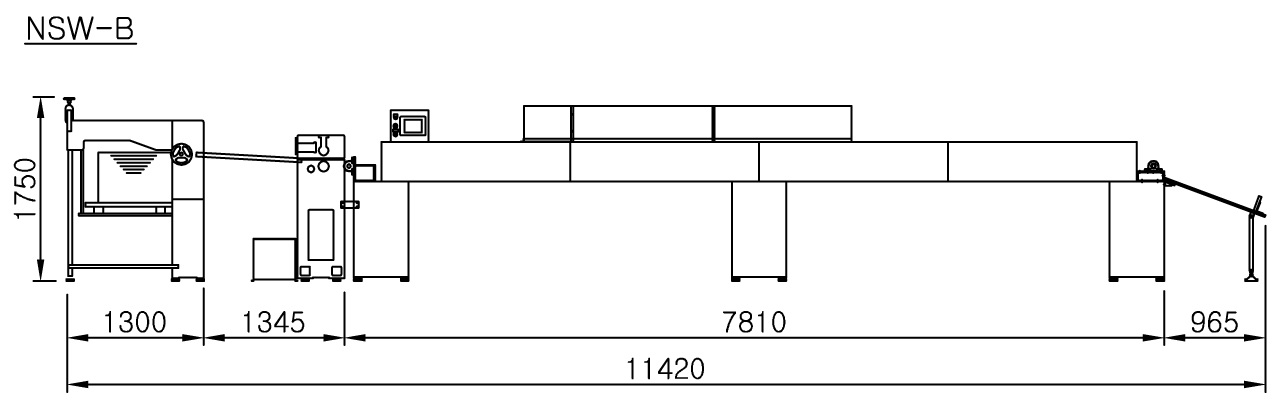

Specification NSW-B
Max. Sheet Size 1180 mm
Mechanical Speed 75 M/min
Total Power 31kw
Floor Space (L×W×H)mm 14500×2000×1800
Appx. Weight 3900kg
